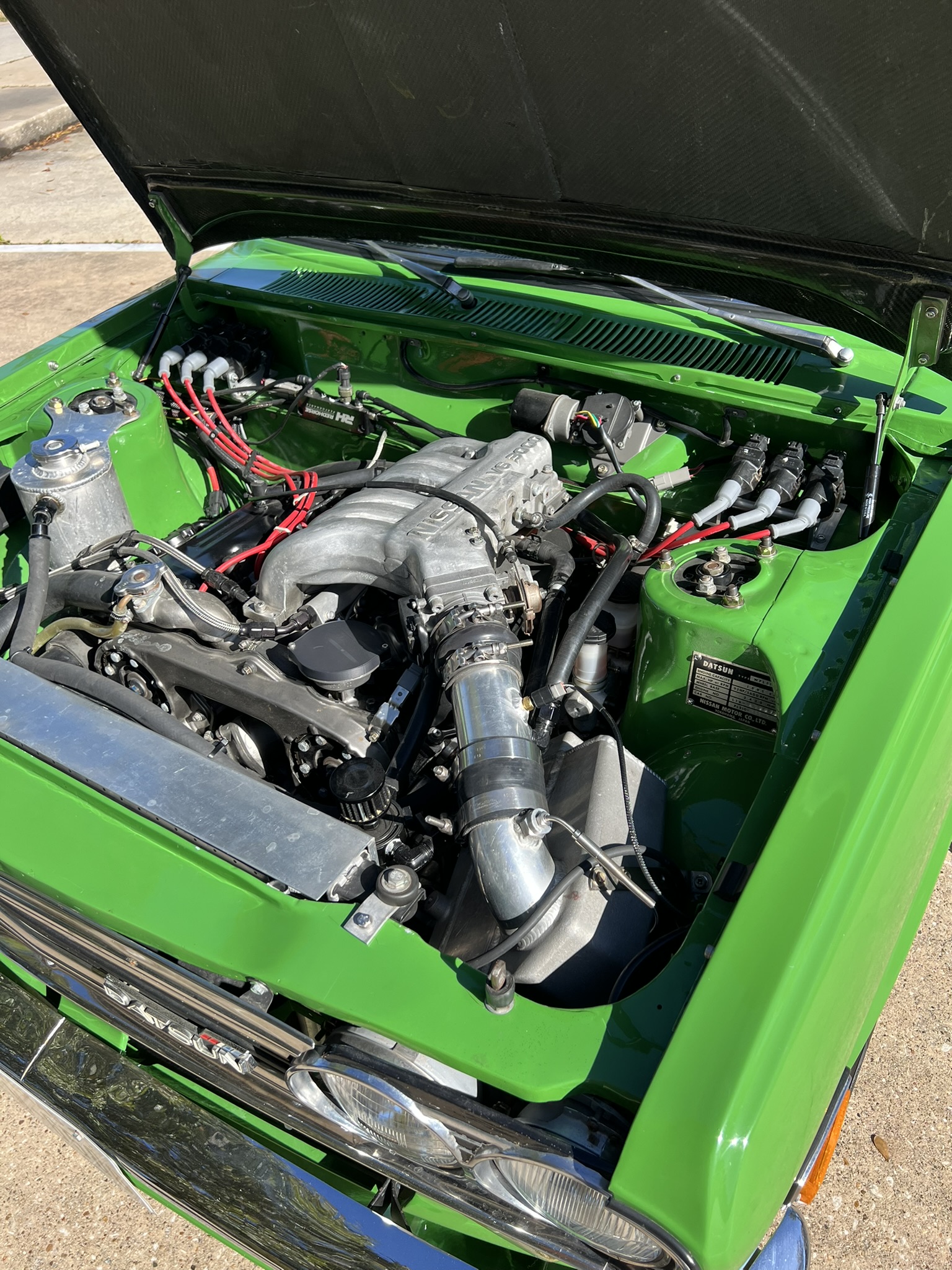

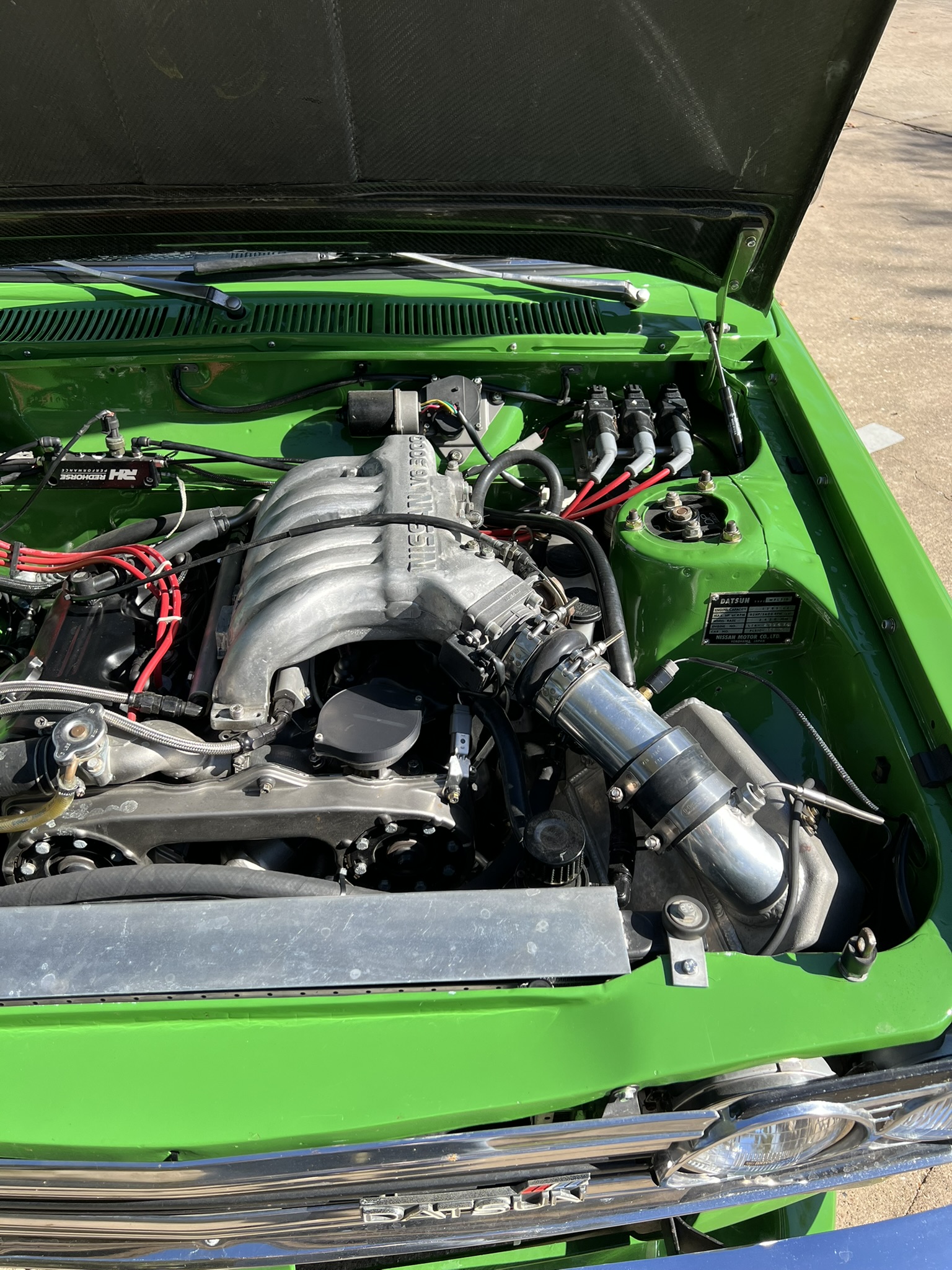

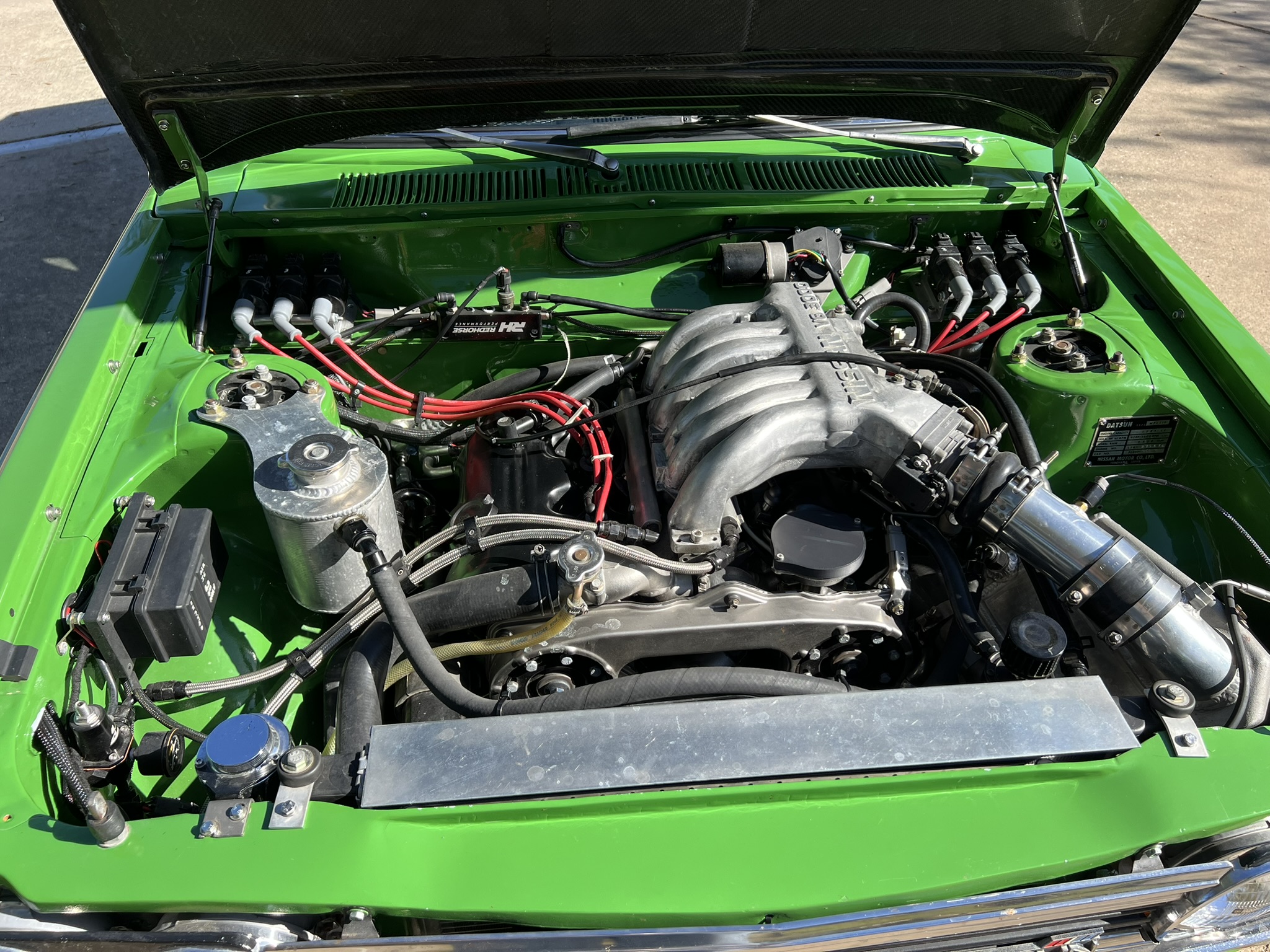

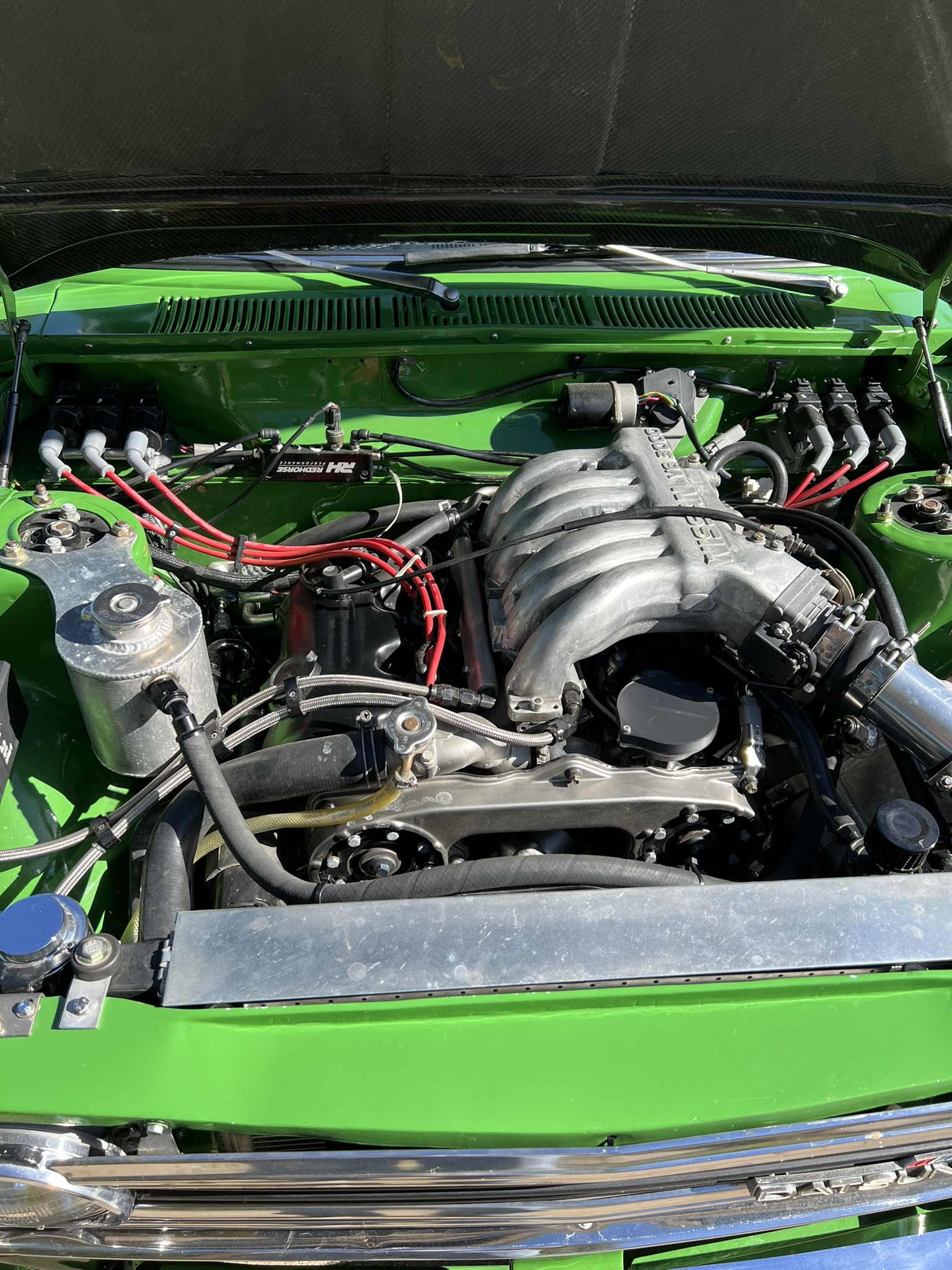

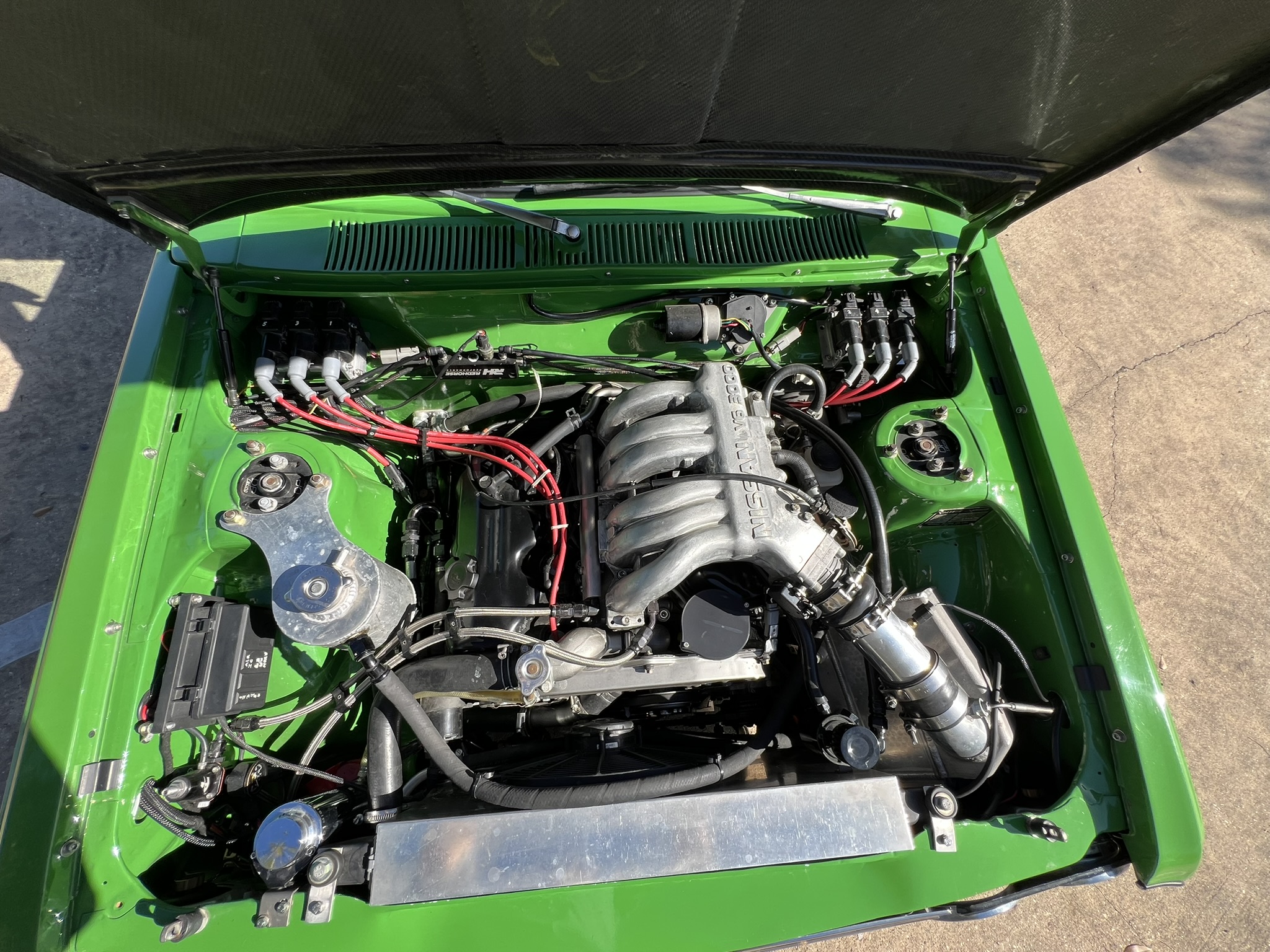

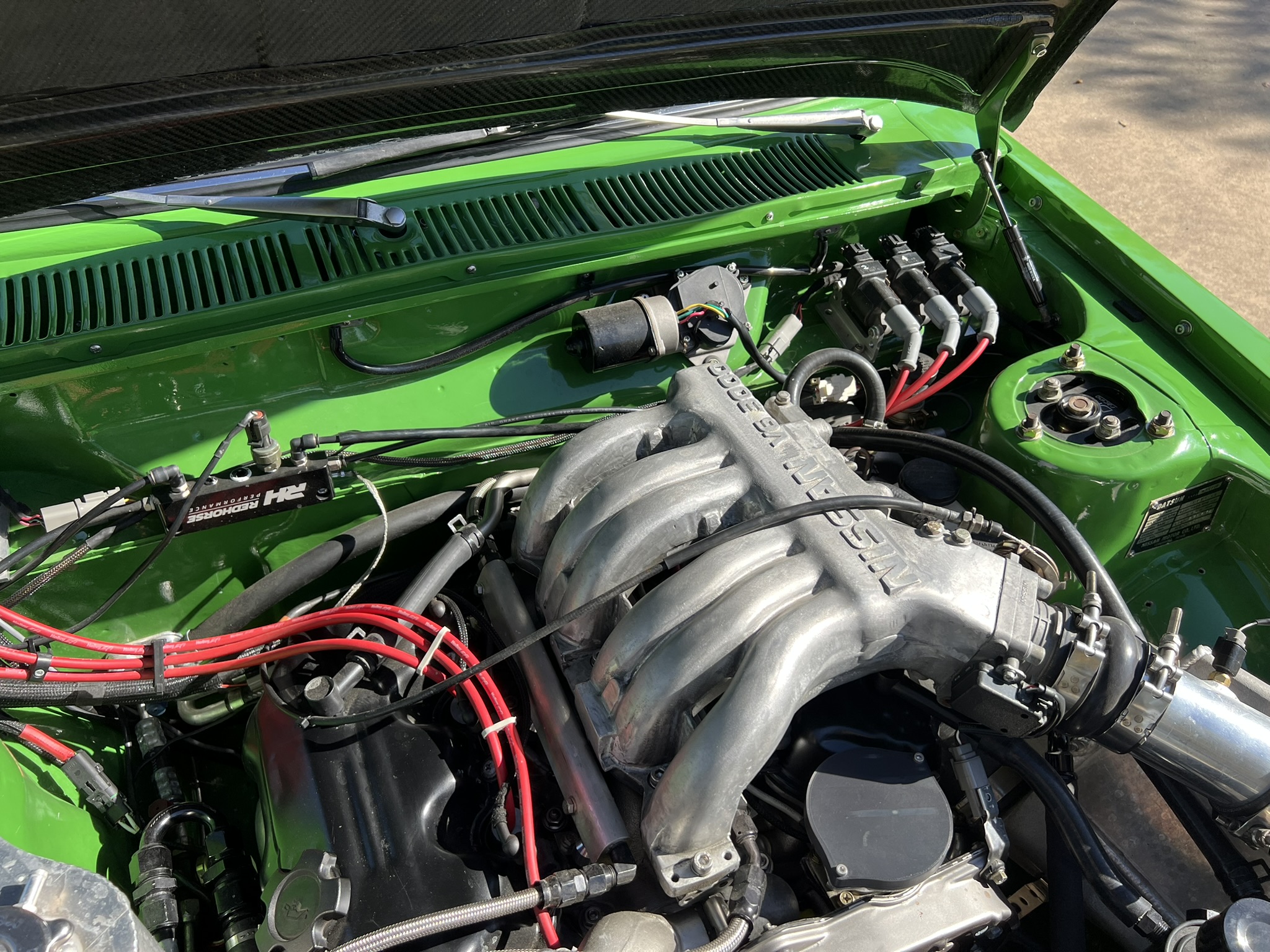

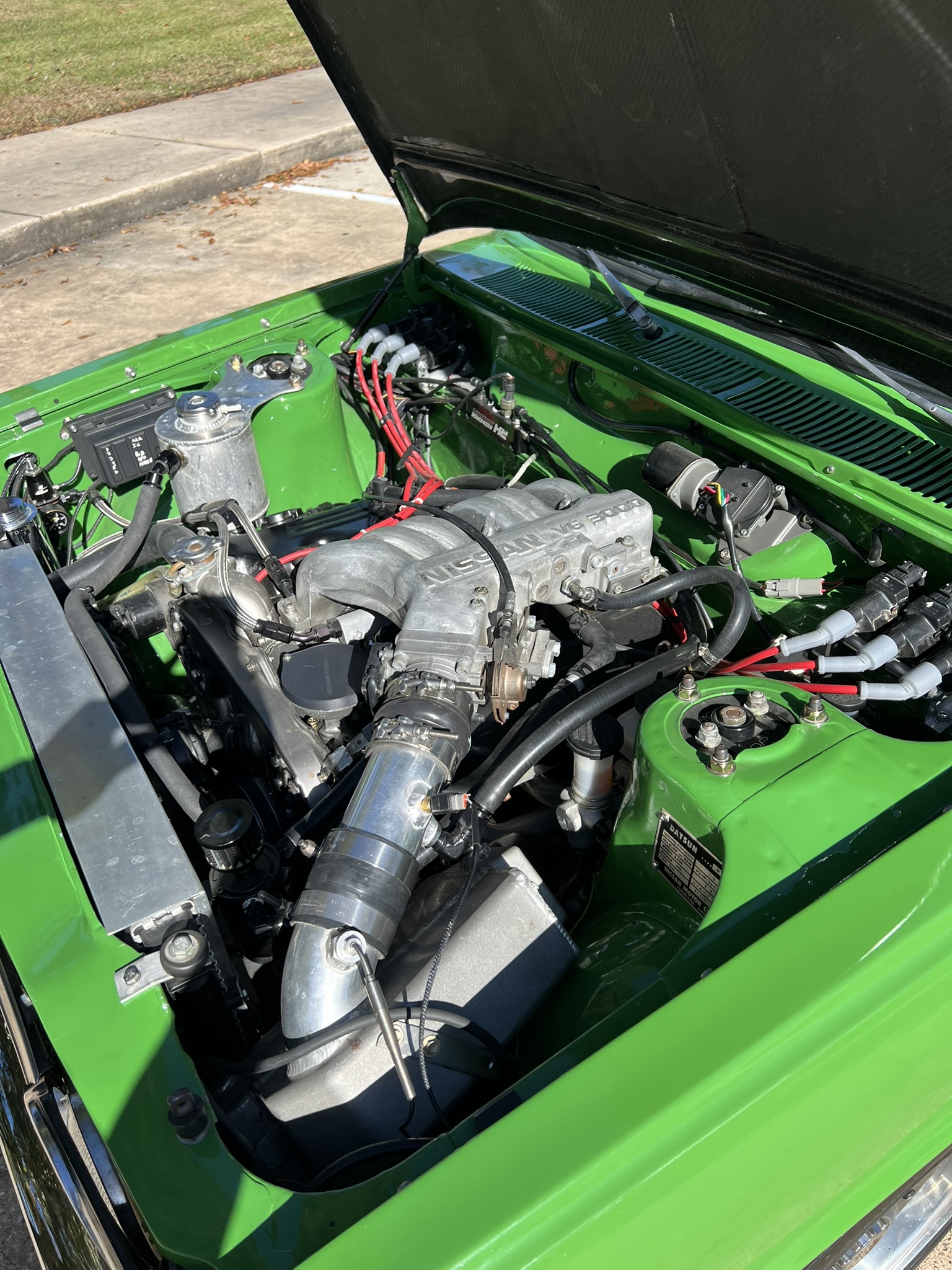

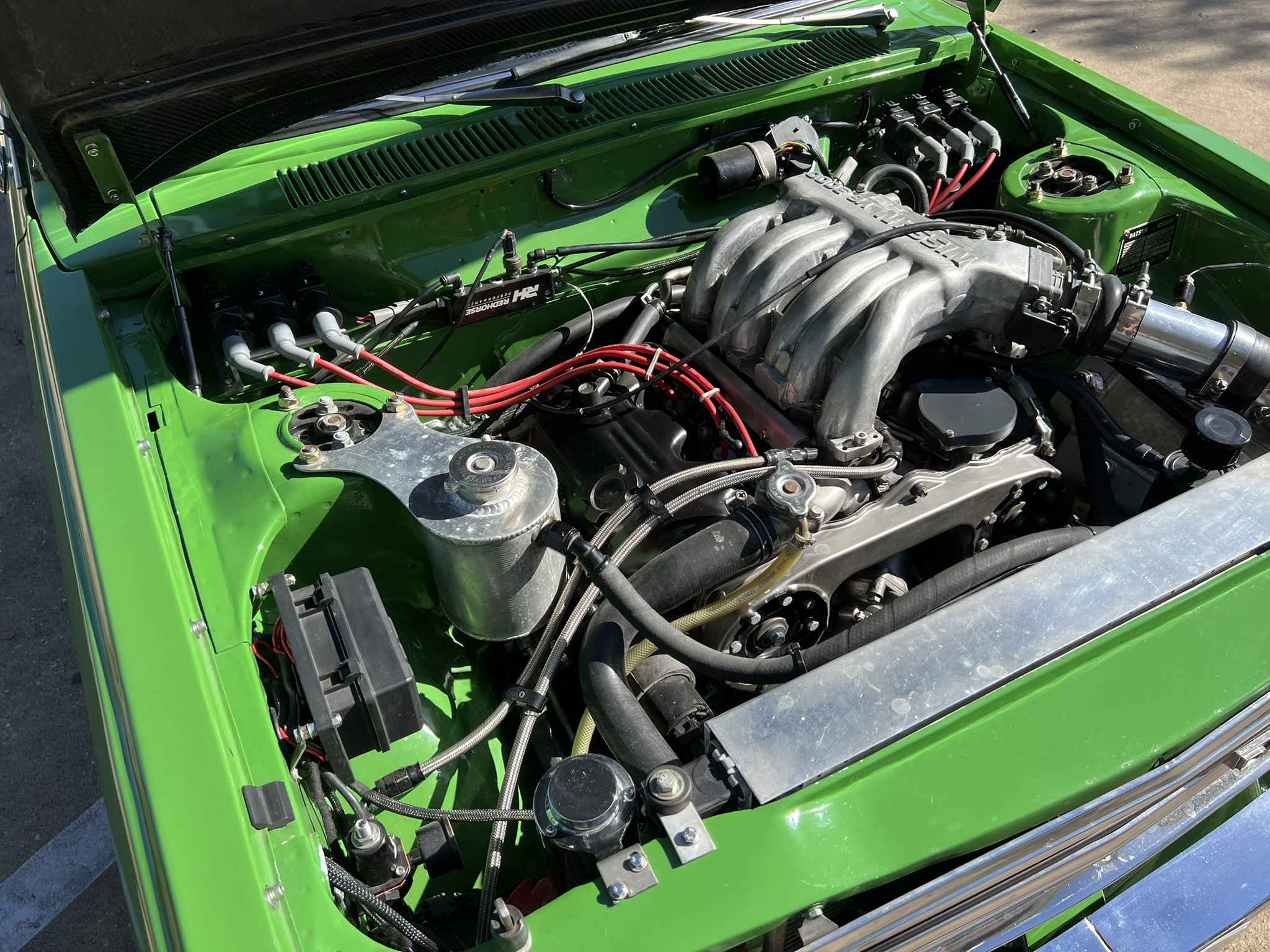

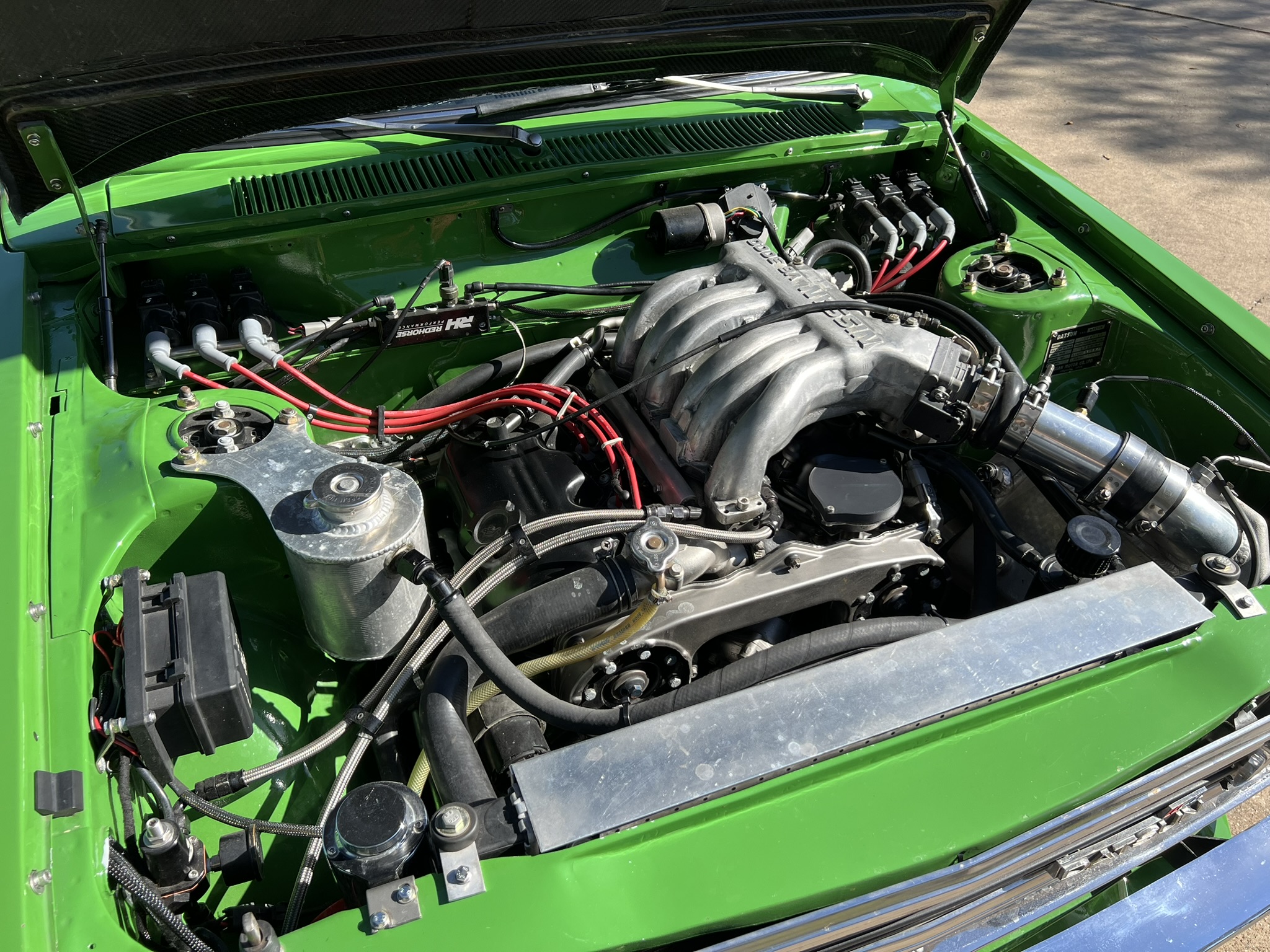

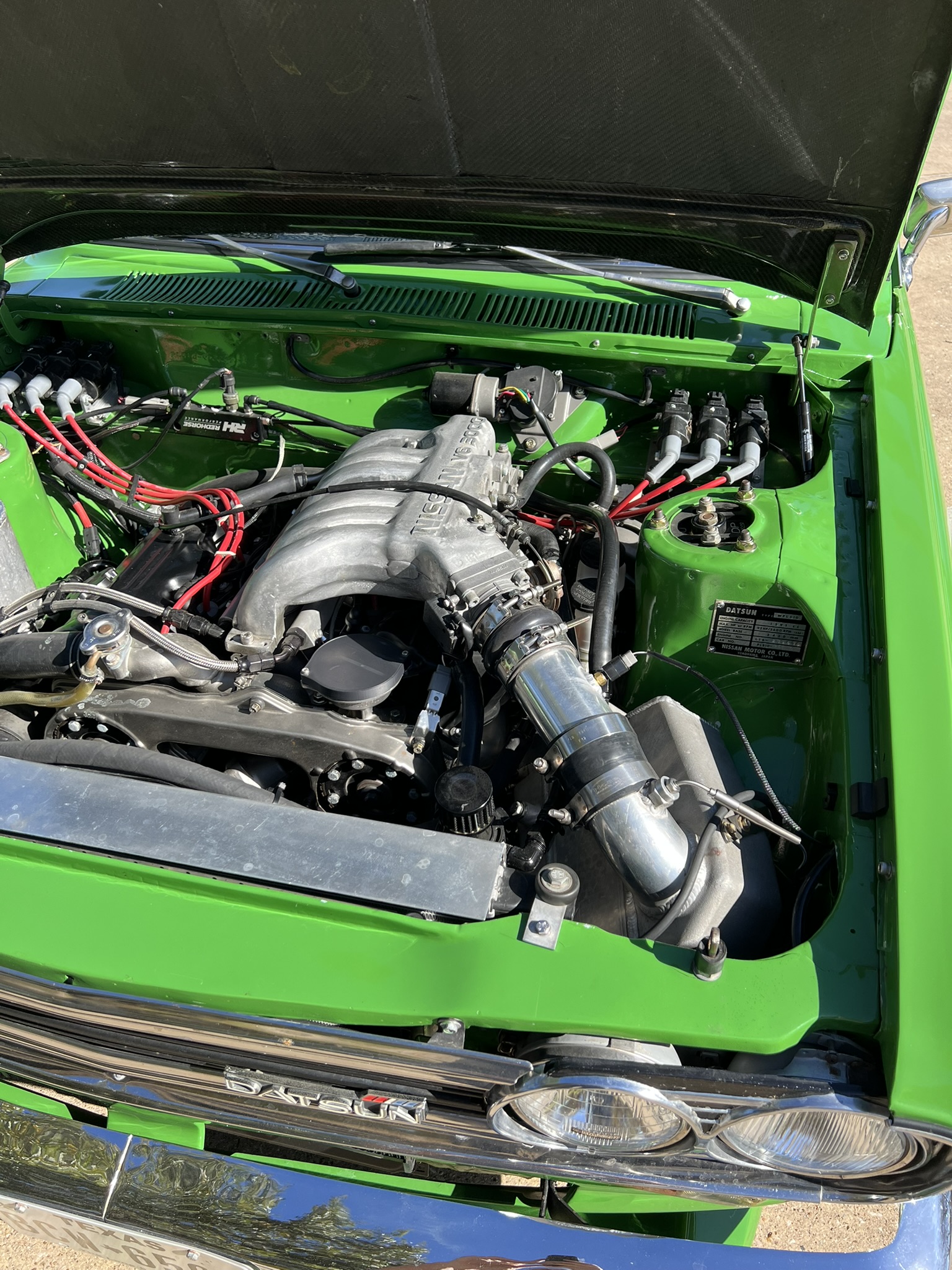

- Nissan Rebuilt VG30 (W Series) with less than 5000 miles.
Block is stock except as noted.
- Pathfinder
Intake
- Cams are Jim Wolf Technology S1 Set (.440”/260 Deg)
- Russ Charlton adjustable cam gears.
- Schnieder Racing Valve Springs.
- Heads have 3 angle performance valve job.
- Oil Pump is from VG30ET (Z31) with higher flow.
- Engine mounts, headers (short tube) and oil pan with pickup
from Experimental Engineering.
- Remote oil filter with oil cooler and thermostat.
- Rear mount turbo system with a Precision 5558 with .64
AR. Air to water intercooler. Turbo is running with a 8 lbs spring but
includes boost controller adjustable to 18 lbs or more.
- Engine control is provided by a Haltech Elite 2000 ECU with
the following features
- Boost Control (with selector on
dash)
- Knock Sensor

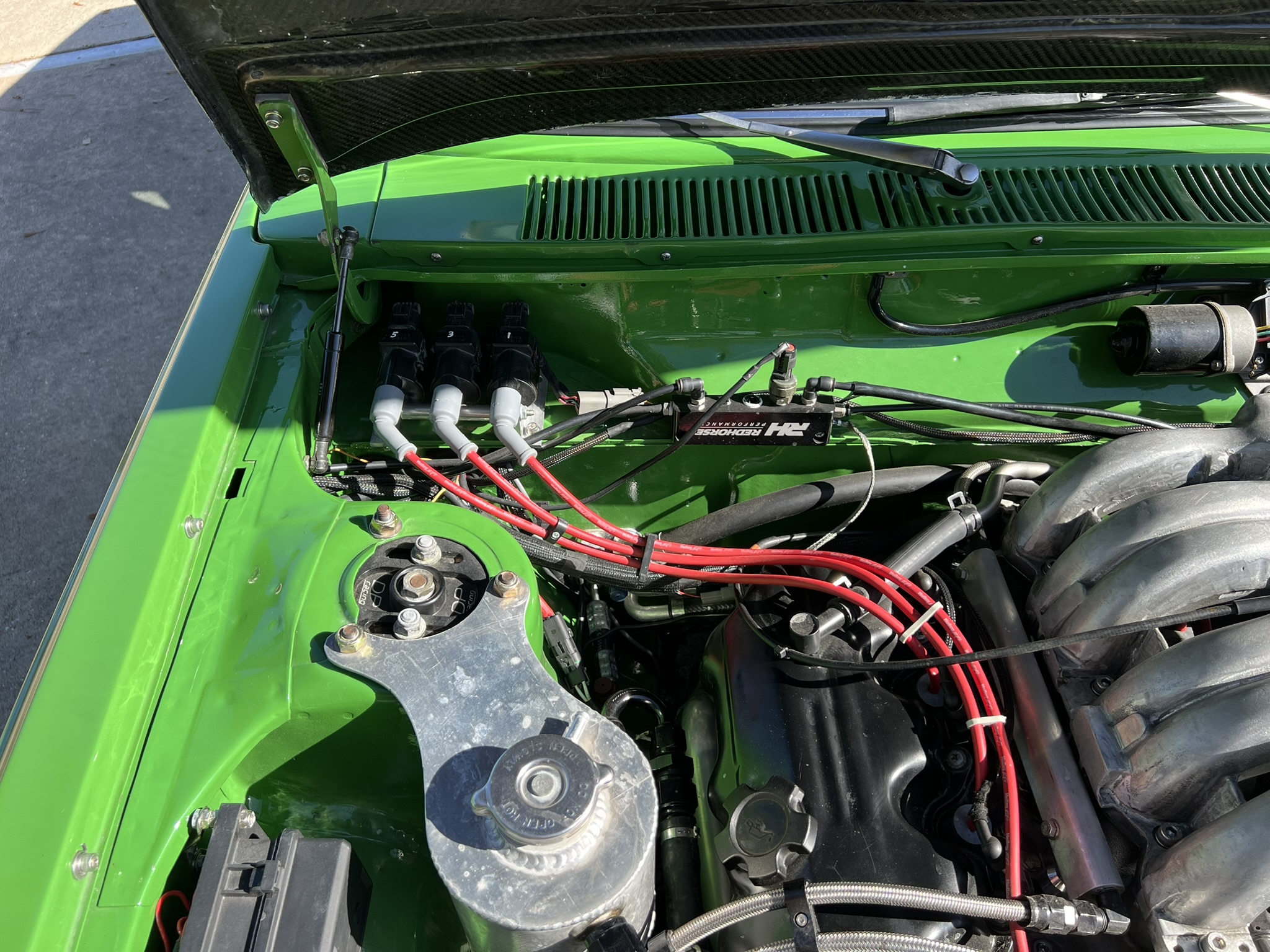

- LS Coils (stock distributor to
trigger the ignition crank angle and cam angle) ·
- Injectors are Bosch EV14 0280158298
and have been flow tested. ·
- Adjustable fuel pressure regulator ·
- Flex Fuel Sensor (not tuned for e85).
- Tuned by Brian at Powerfab Auto. Tune is unlocked.
- At 8
lbs boost the engine makes 240 HP and 258 ft lbs torque at the wheels.
- At 18 lbs boost the engine makes 332 HP and 345 ft lbs torque at the wheels.
- Clutch is Jim Wolf 87-89 Z31T Hi Perf Pressure Plate with
disc with a Fidanza Aluminum Flywheel.
Rated up to 450 ft. lbs.
- Transmission is a FS5W71 from a Z31 (300ZX) rebuilt with SKF Bearings and New Nissan syncros sourced from overseas.
- RX7 (84 GSL SE with limited slip) narrowed by John Wallum to
fit the 510 Wagon. It includes the stock
disc brake rebuilt with working E brake. Differential rebuilt by Ben Herne (PuddyMod) with custom
solid steel sleeve (in place of crush sleeve) with 3.63 ratio.
- Rear Leaf springs de-arched and stiffened to lower rear.
Traction Bars to prevent spring wrap. KYB
Shocks.
- Front Coil Overs with bump steer spaces on 280ZX struts. Koni Front Dampers. 1" front swaybar, 5/8" rear swaybar.
- Front and Rear disc brake with B210 Power booster.
- Datsun Restomods Electric Power Steering Kit.
- Speedhut Gauges. GPS speedo, tach, oil pressure, water temp, vacuum/boost, fuel.
- Custom Aluminum fuel tank with 255 liter/hr Walbro fuel pump.
- Watanabe RS8 15x6.5 +18 Front and 15x7 +27 Rear, 185/55/15 Front and 205/15/15 Yokahama Advan Tire
